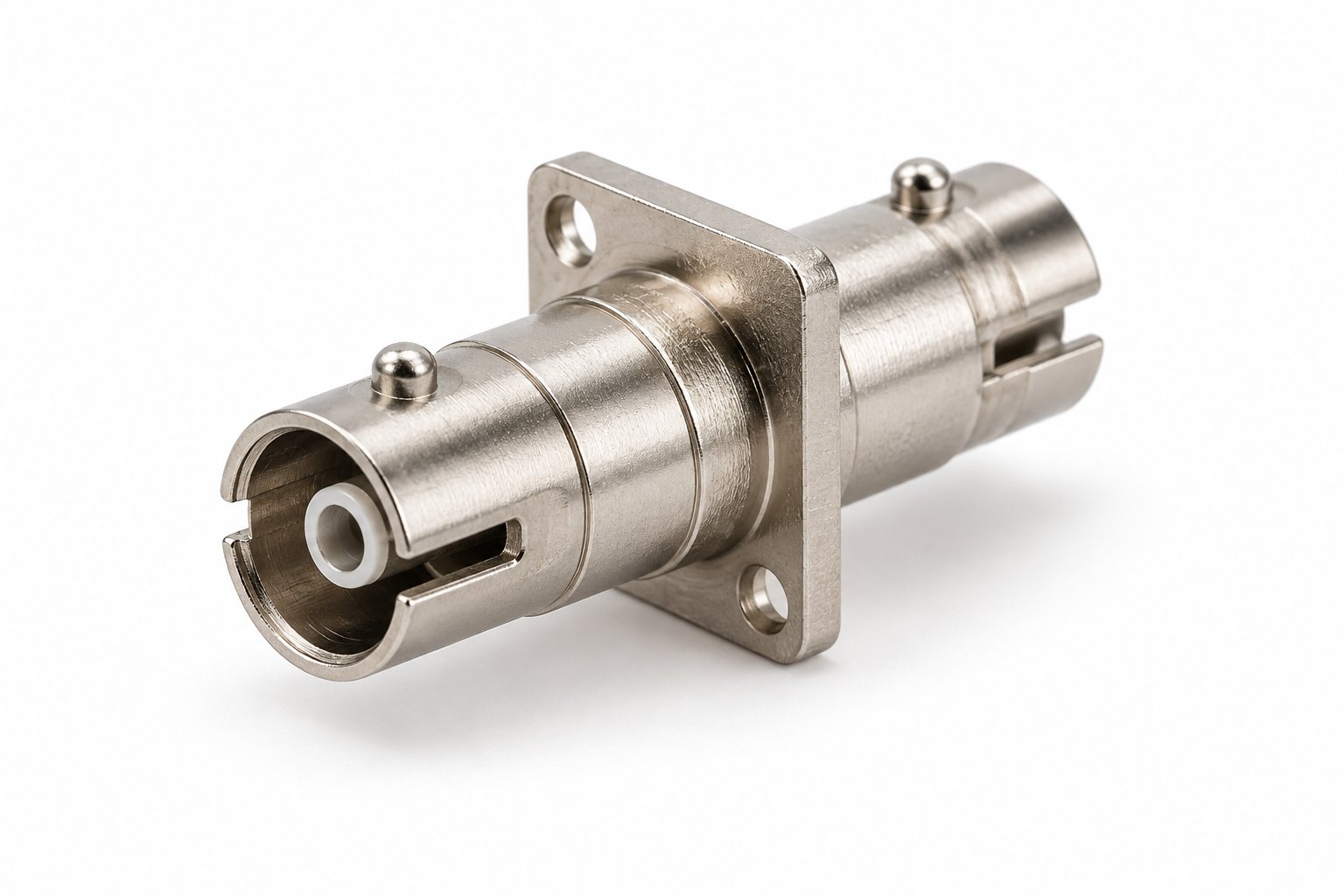

ST Multimode Fiber Optic Adapter

ST multimode fiber optic adapter with bayonet locking for reliable connection in legacy and enterprise multimode networks.

Connector

ST

Connector type

ST

Application

Legacy networks, enterprise LAN, test equipment

MOQ: 100

Product Notes

  • ST bayonet locking
  • Multimode alignment
  • Legacy network compatible
  • Simplex, standard or custom flange
Get A Quote

Specifications

Fiber type, connector, test data, packaging proof and sample-kit notes are kept in the same quote sheet.

Connector typeST
ModeMultimode
LockingST bayonet
TypeSimplex
Alignment sleevePrecision ceramic (zirconia)
Insertion lossTypical 0.2 dB, max 0.3 dB at 850/1300 nm
Return lossUPC, typical 50 dB or better at 1300 nm
Mating durability500 mating cycles minimum
Operating temperature-40 °C to +75 °C
Standard flange30.0 x 25.4 mm face, 24.0 mm hole spacing (typical)
Panel cutout9.5 x 9.5 mm single D-hole (typical)
ApplicationLegacy networks, enterprise LAN, test equipment
Warranty12 months from shipment date

Application Notes

ST Multimode Fiber Optic Adapter: Holding Alignment on Legacy ST Panels

ST connectors still carry traffic in a large installed base of backbone, riser, and test-bench fiber. When you maintain or extend that infrastructure, the ST multimode fiber optic adapter is the part that holds two ST-terminated multimode fibers on a fixed axis. It is a small component, but that axis decides how much light crosses between the two fibers and how stable the link stays after repeated patching.

The problem: a loose bayonet housing turns one port into a repeat service call

The ST interface locks with a quarter-turn bayonet twist instead of a screw thread or a push-pull latch. Retention therefore depends on the spring tension in the connector's bayonet slots and on how tightly the adapter housing holds the connector body. On a patch panel that is re-patched during moves, adds, and changes, the same port can be cycled dozens of times a year.

When the housing is molded to a loose tolerance or the alignment sleeve is not held concentric, each cycle lets the ferrule seat slightly differently. The loss on that port drifts: it can pass a test at installation and read high a month later, after a technician has re-patched the panel. Because the fault is intermittent, it is normally found by swapping jumpers and adapters one at a time. On a 24-port panel that means up to 24 adapter positions to isolate, and every adapter pulled during fault isolation is a spare consumed from stock.

The solution: concentric sleeve plus a bayonet housing that holds its geometry

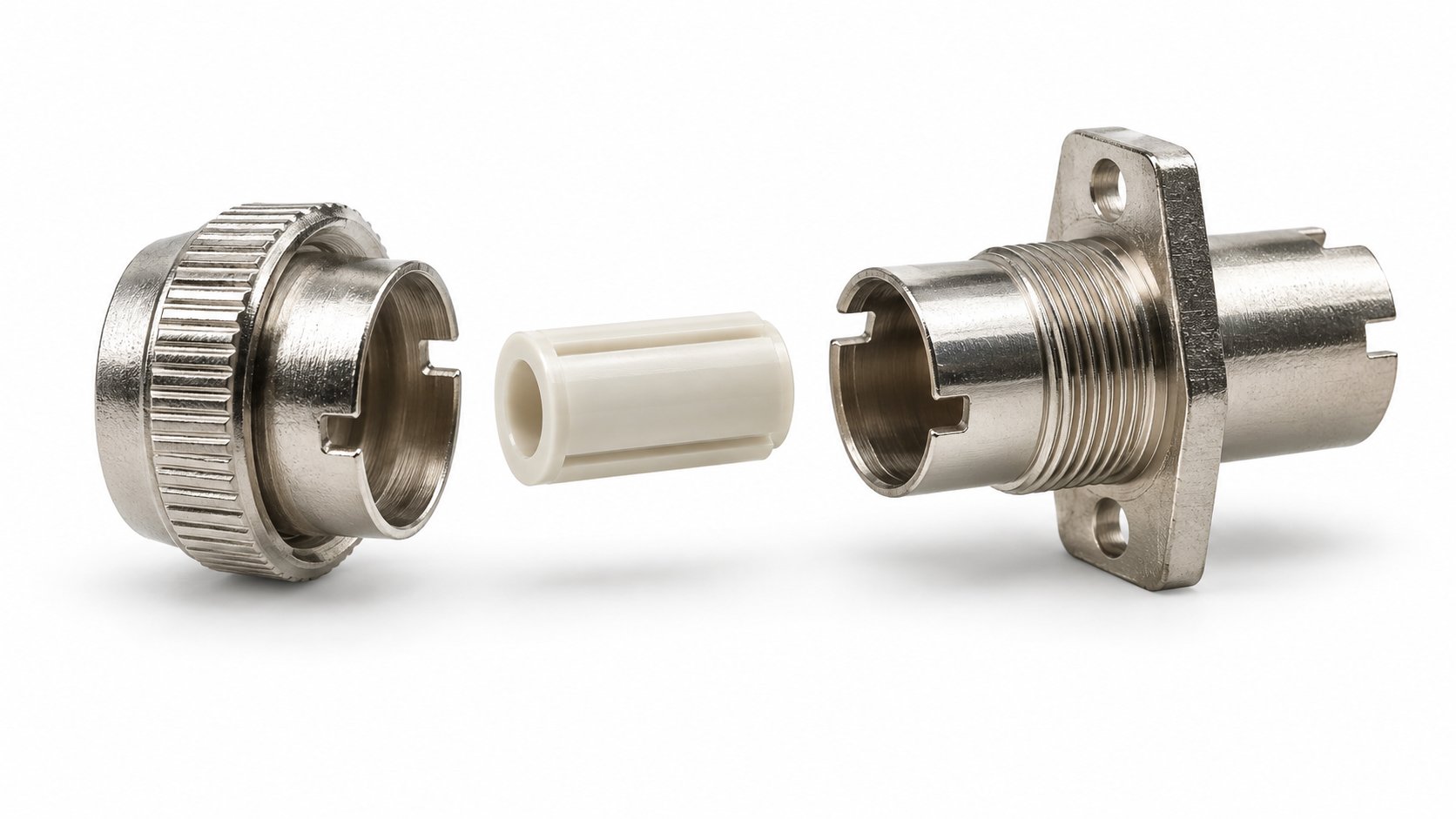

This adapter addresses the failure at the two points where it starts. The zirconia ceramic alignment sleeve is held concentric inside the housing, so the two ferrules meet on the same axis each time a connector is seated. The housing is dimensioned so the bayonet lugs engage with a defined retention rather than a loose or over-tight twist, and ferrule seating depth is controlled so the connector body bottoms out at the same point on every insertion.

In maintenance terms, that design targets the specific cost of an intermittent ST port: the repeat visit to the same panel position, the adapters consumed as swap-out spares during fault isolation, and the link budget that drifts after a re-patch. Whether those savings appear in your network depends on how the panel is operated, so keep end faces clean and follow the insertion steps below. The adapter is rated for 500 mating cycles minimum, and the insertion loss figures in the table below are stated for a mated pair at 850 nm and 1300 nm; use those two values together when you plan spares and link budget.

Product specifications

ParameterSpecification
Connector typeST
Fiber modeMultimode
Locking mechanismST bayonet (quarter-turn)
Adapter typeSimplex
Alignment sleevePrecision ceramic (zirconia) sleeve
Insertion lossTypical 0.2 dB, maximum 0.3 dB per mated pair, measured at 850 nm and 1300 nm with clean, correctly polished multimode connectors
Return lossUPC polish, typical 50 dB or better at 1300 nm on a mated pair
Mating durability500 mating cycles minimum
Operating temperature-40 °C to +75 °C
Standard flangeRectangular ST panel flange, 30.0 mm x 25.4 mm flange face, 24.0 mm mounting hole spacing (typical)
Panel cutoutSingle D-hole cutout, 9.5 mm x 9.5 mm (typical)
MountingPanel or bulkhead cutout
Typical applicationsLegacy networks, enterprise LAN, test equipment
Warranty12 months from shipment date

The insertion loss, return loss, and durability values above are typical reference values for the standard configuration of this ST multimode adapter, measured on a mated pair with clean, correctly polished multimode connectors at the wavelengths stated. They are not a guarantee for every combination of sleeve and ferrule; if your order uses a different sleeve or ferrule specification, confirm the applicable values with your supplier before finalizing your link budget. The flange and cutout dimensions are typical values for the standard flange and should be checked against your own panel drawing before ordering.

Flange and panel fit

The standard flange is the rectangular ST panel flange used on common ST patch panels and bulkhead adapters, with a typical flange face of 30.0 mm x 25.4 mm and 24.0 mm mounting hole spacing. Check those two dimensions and the 9.5 mm x 9.5 mm single D-hole cutout against your panel drawing before you order. If your panel uses a different opening or hole pattern, send us the panel opening and mounting hole pattern with your inquiry and we will confirm whether the standard flange seats directly or a custom flange is required. Custom flanges are quoted separately because they need a dedicated setup; the reference MOQ for a custom flange is 500 pieces, against 100 pieces for the standard configuration, and the exact figure is confirmed with your quotation.

Where this adapter fits in your network

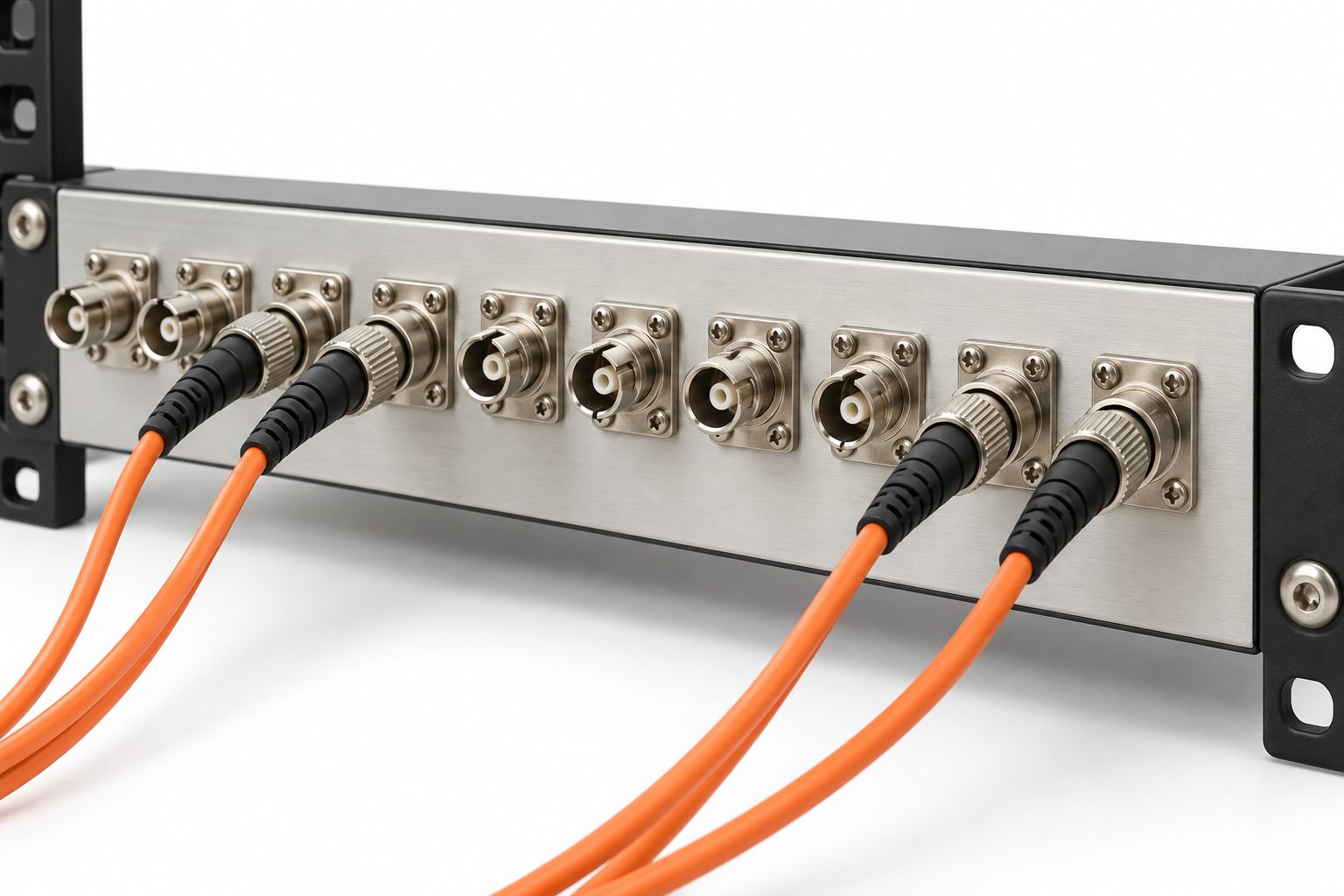

  • Legacy backbone and riser runs built with ST connectors that are still carrying traffic and need new connection points without re-terminating existing cable.
  • Enterprise LAN distribution frames where ST patch panels connect switches, servers, and workstations over multimode fiber.
  • Test benches and field instruments that use ST ports for reference and measurement jumpers, where the same port is plugged and unplugged repeatedly.

This ST multimode adapter is built for multimode fiber. Single-mode links need a different alignment sleeve and should use a single-mode adapter; do not substitute one for the other.

What to confirm before you order

  • Simplex or duplex need: this adapter is simplex and joins one fiber pair. Count the pairs you must connect and plan two units per duplex link, or a duplex panel arrangement.
  • Flange and panel cutout: check the typical flange face and mounting hole spacing above against your panel, and confirm whether your panel takes the standard ST flange or a custom one.
  • Ferrule and polish of existing connectors: confirm the ferrule diameter and polish type of the ST connectors in service so the alignment sleeve matches.
  • Quantity and spares: add spares for maintenance, since adapters are consumed during fault isolation on legacy panels.

Installation and maintenance notes

  • Keep the dust caps on unused ports until a connector is ready to be inserted; a contaminated end face raises loss far more than the adapter geometry itself.
  • Inspect the ferrule end face with a scope where one is available, and clean it with the correct fiber cleaning tool before insertion.
  • Align the connector keyway with the adapter slot, push the connector straight in until it seats, then turn the bayonet coupling a quarter turn to lock it. Do not force a misaligned connector.
  • Do not over-rotate the bayonet coupling past its stop; over-torque stresses the housing and is not covered by the warranty.
  • In high-use test ports, inspect the end faces periodically, since repeated plugging is the main wear point.

Quality control and production process

Nexora manufactures fiber optic connectivity products in a 16,000+ m² facility in Shenzhen with 12 production lines and 180+ employees, supported by 30+ QC stations. Across all fiber optic product lines, the facility runs an annual capacity of about 2.8M units and a monthly capacity of about 230K units; these are company-level figures for the whole fiber optic product range and are updated with the latest quotation. Quality control runs through the whole process rather than only at final inspection: incoming material inspection, component inspection, in-process inspection, functional testing, visual inspection, final inspection, and packaging inspection.

For an ST adapter, the checks that decide alignment are the sleeve bore and concentricity, the housing dimensions that set bayonet retention, and the seating depth of the ferrule inside the sleeve. These are company-level facts about how we build and control our products; they describe our manufacturing and quality-control capability rather than a certification of this specific adapter.

Why buyers work with Nexora

  • Manufacturing since 2014 in Shenzhen, China, serving telecom operators, ISPs, distributors, system integrators, network contractors, and data center companies worldwide.
  • Scale for bulk orders: 16,000+ m² facility, 12 production lines, 180+ employees, and an annual capacity of about 2.8M units across all fiber optic product lines.
  • Broad product range: 3,500+ product configurations across fiber optic products, FTTH products, cables, and connectivity, with 300+ new configurations developed each year.
  • OEM/ODM experience: 500+ completed OEM/ODM projects across our fiber optic connectivity range, including custom flange and panel-fit requirements.
  • Export coverage: product supply to 50+ countries and regions.
  • Pre-sales and after-sales support: configuration confirmation before order, and a 12-month warranty from shipment date on this ST adapter.

Procurement FAQ

What is the MOQ for this ST multimode adapter?

For the standard flange configuration the reference MOQ is 100 pieces; a custom flange is quoted at a reference MOQ of 500 pieces because it needs a dedicated setup, and OEM packing is quoted at a higher minimum than the standard configuration. State your target quantity and configuration in the inquiry and we will confirm the applicable MOQ.

How is the adapter packed and shipped?

Adapters are supplied with dust caps fitted to protect the alignment sleeve, packed in anti-static bags and then in cartons. The typical packing unit is 100 pieces per inner box and 500 pieces per export carton; the exact packing unit, carton quantity, and carton dimensions are confirmed with your quotation because they change with the flange configuration. Shipping method and terms are agreed at order stage based on your destination and volume.

What is the lead time?

For the standard flange configuration the typical lead time is 7 to 15 working days after order confirmation, depending on order quantity and current production schedule. Custom flange and OEM packing configurations typically require 15 to 25 working days because they need a dedicated setup. These are reference ranges for production time, not a committed delivery date; the confirmed lead time is stated in your quotation, and transit time depends on the shipping method you choose.

What payment terms do you accept?

For standard configurations our usual terms are 30% deposit by T/T with the balance due before shipment, and L/C at sight is also accepted for larger orders. Payment terms are confirmed with your quotation and order, so tell us your preferred terms when you request a quote and we will confirm what applies to your order.

Can I get samples before placing a bulk order?

Sample requests are handled per project. State the connector type, flange requirement, and quantity you want to evaluate, and we will confirm the sample arrangement with your quotation.

Can the adapter carry our own logo or brand?

OEM and ODM supply is part of our standard service, including custom flange and panel-fit requirements. Tell us your branding and packaging requirement when you inquire.

Do you offer OEM/ODM customization?

Yes. We have completed 500+ OEM/ODM projects across our fiber optic connectivity range. For this ST adapter, customization typically covers the flange, panel cutout fit, and packing configuration; describe your requirement and we will confirm feasibility.

What does the warranty cover?

This ST adapter carries a 12-month warranty from shipment date covering manufacturing defects in the adapter body, alignment sleeve, and housing. It does not cover damage from incorrect insertion, contamination, or over-torque during installation. Report a suspected defect with the order number and quantity affected, and we will confirm the replacement arrangement.

Request product details

Tell us your connector type, simplex or duplex need, flange and panel cutout, target quantity, and any OEM/ODM or packing requirement so we can confirm the right ST multimode adapter configuration for your network.
