SC/APC Single Mode Fiber Optic Adapter

Why the SC/APC Single Mode Fiber Optic Adapter Matters in FTTH and CATV Links

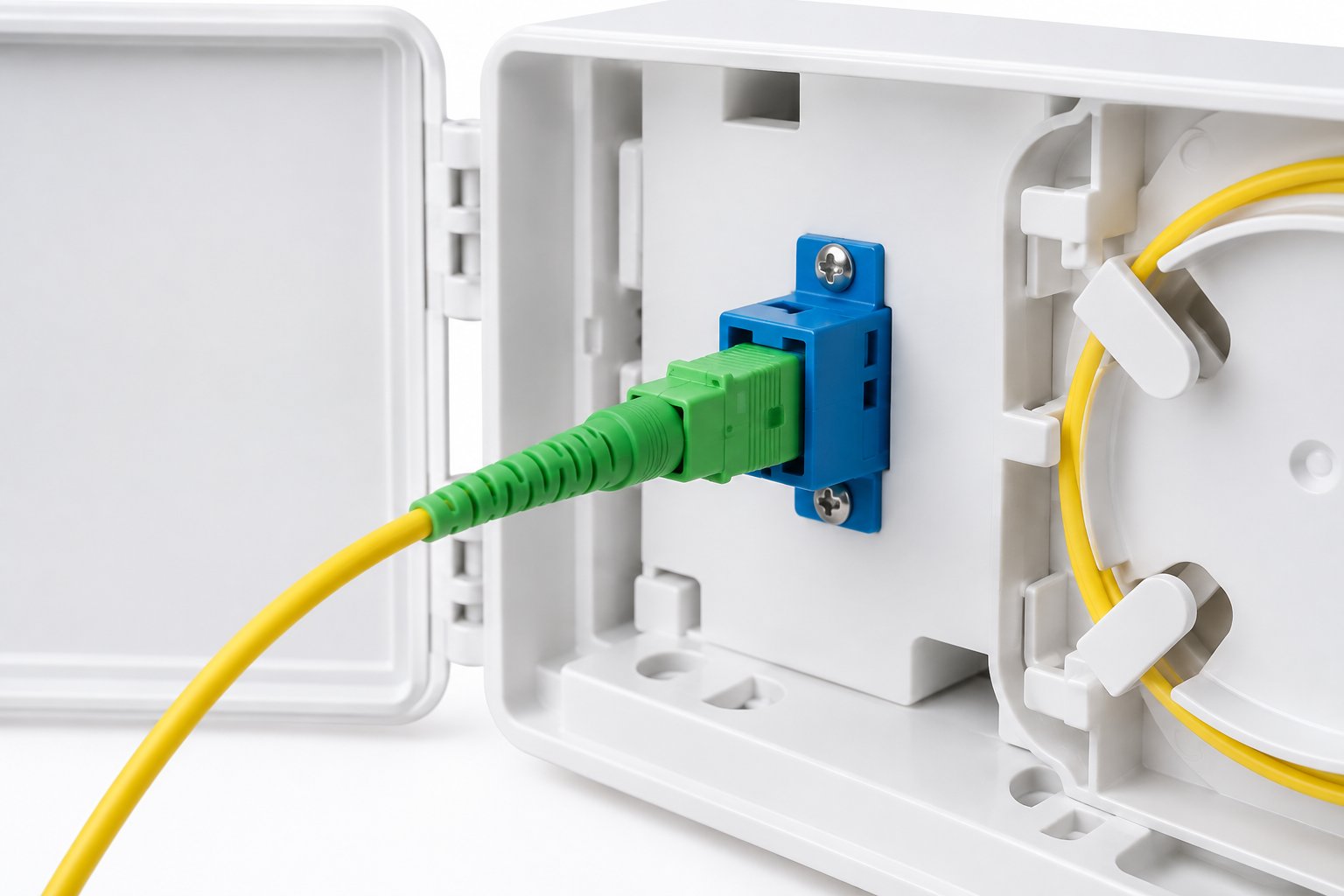

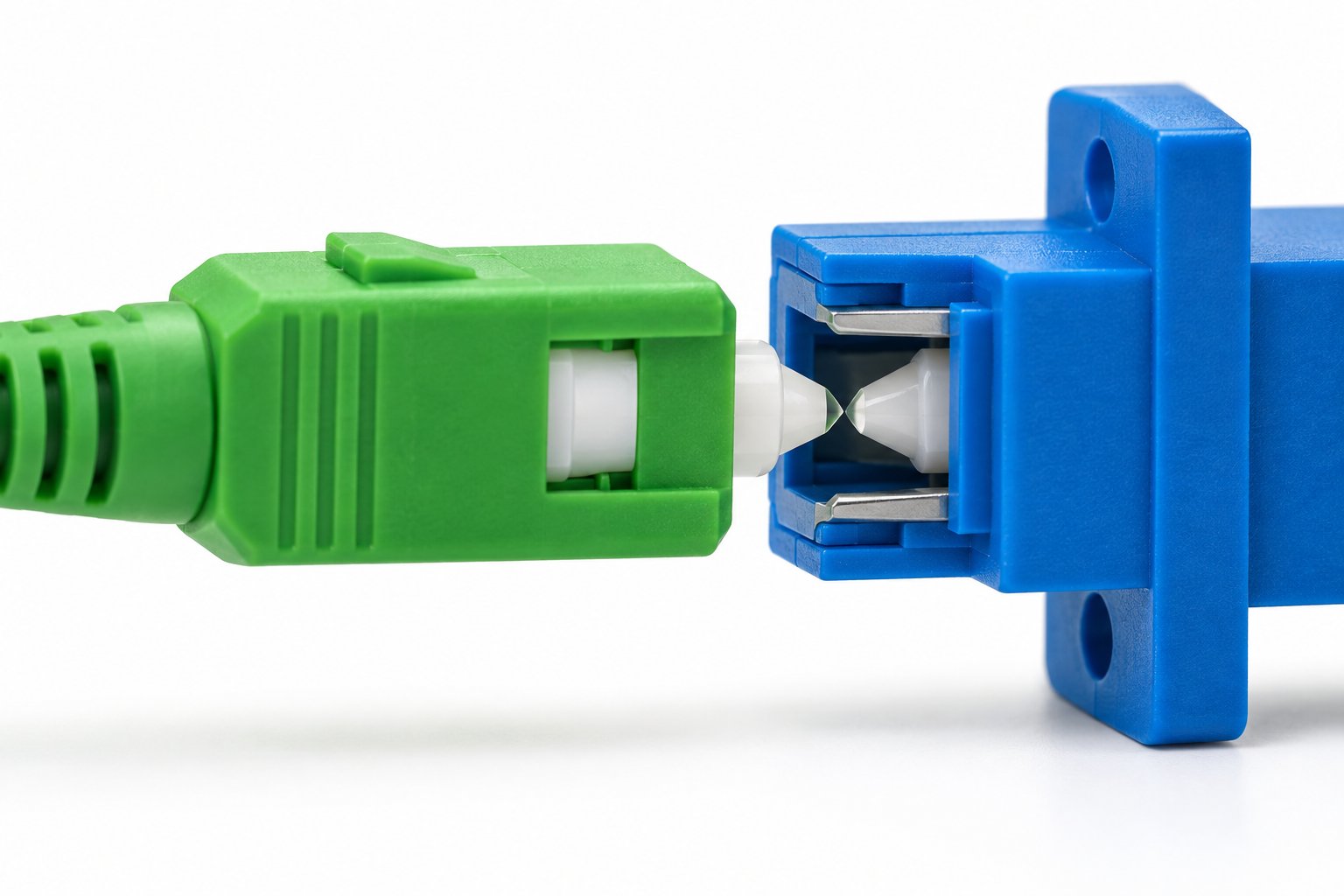

In FTTH, CATV and access networks, the SC/APC single mode fiber optic adapter is the passive component that joins two SC/APC connectors at a distribution box, patch panel or wall outlet. Its job is simple to state but exacting to deliver: it must hold the two ferrule tips in precise alignment so the optical signal crosses the joint with the lowest possible loss and the least reflected light. For a single mode link that carries high-speed or high-precision signals, the quality of this joint directly affects link budget and signal integrity.

The Buyer Pain: Return Loss and Alignment Drift in Single Mode Links

For a B2B buyer sourcing adapters for FTTH or CATV rollouts, the recurring problem is not whether an adapter can connect two plugs, but whether it can do so without degrading the link. Two issues dominate field experience. First, return loss: in a single mode link, light reflected back toward the transmitter can interfere with the signal, and this is especially harmful in high-precision or high-speed transmission. Second, alignment drift: an adapter whose alignment sleeve is not held firmly, or whose bore is not concentric, lets the two ferrules sit slightly off-axis. Over repeated insertions the mating can become inconsistent, and insertion loss creeps up. Both problems surface only after the network is installed, when rework is expensive and disruptive.

How This SC/APC Adapter Answers the Pain

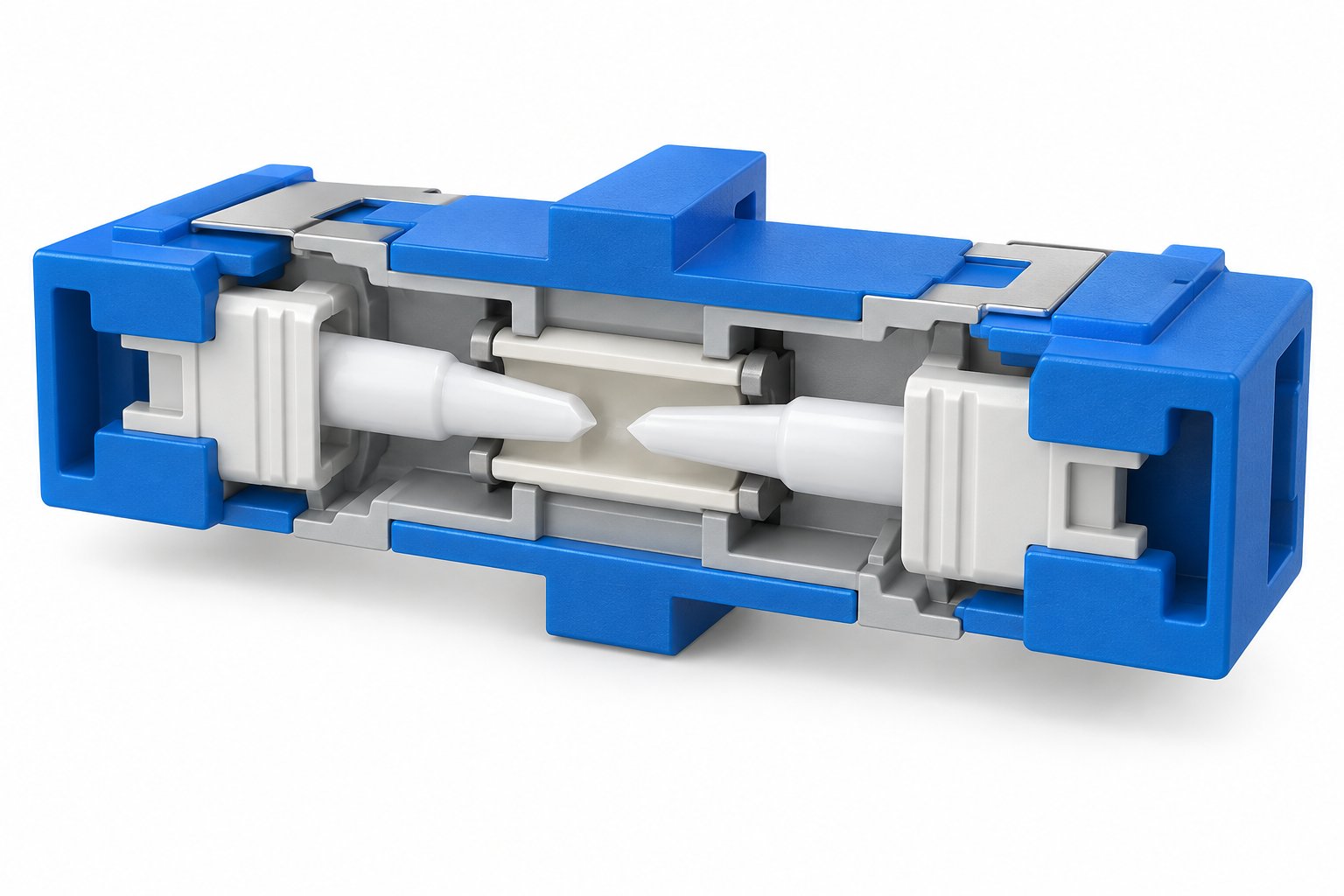

This SC/APC single mode fiber optic adapter is built around the angled physical contact (APC) polish. The APC end face is angled at 8 degrees, which directs reflected light away from the core instead of back into the transmitter. That is why the return loss is specified at ≥ 60 dB, a level that keeps reflected power negligible for single mode FTTH and CATV links. The adapter body holds the ferrule alignment sleeve securely, so the two connector tips stay concentric through repeated insertions, with insertion loss specified at ≤ 0.2 dB. Because the sleeve and bore are machined to a consistent tolerance, the mating stays stable over many connect and disconnect cycles rather than drifting with wear.

Specifications at a Glance

Choosing the Right Configuration

Two configuration choices matter most when you order. The first is simplex versus duplex. A simplex adapter joins a single fiber and is typical for FTTH drop cables and CATV taps; a duplex adapter joins two fibers side by side and suits bidirectional or two-fiber links. The second is flange style. A flanged adapter mounts flush into a panel or distribution box with screws, while an unflanged adapter snaps into a cut-out. Confirm the panel opening and mounting method of your enclosure before you specify, so the adapter seats correctly on site.

Quality Control Behind the Part

Nexora runs quality control through the whole production process across 30+ QC stations, covering incoming material, component, in-process, functional, visual, final and packaging inspection. For an adapter, the functional checks focus on insertion loss and return loss so the part leaves the line within the stated limits. As a manufacturer with 12 production lines and an annual capacity of 2.8M+ units, Nexora supports standard orders, bulk supply and OEM/ODM customization, including custom flange styles, colors, labels and packaging.

Buyer FAQ

What is the difference between APC and UPC adapters?

APC (angled physical contact) end faces are polished at an 8-degree angle, which directs reflected light away from the core and gives a higher return loss (≥ 60 dB here). UPC (ultra physical contact) end faces are flat-polished and give a lower return loss, typically around 50 dB as an industry-typical value. For single mode FTTH and CATV links where reflected light matters, APC is the common choice. Match the adapter polish to the connector polish of your patch cords.

Should I order simplex or duplex?

Use a simplex adapter for a single-fiber connection, such as a typical FTTH drop. Use a duplex adapter when the link uses two fibers, for example a bidirectional or two-fiber connection. Confirm the fiber count of your drop or trunk before ordering.

What flange style should I choose?

Choose a flanged adapter when the part mounts flush into a panel or distribution box with screws, and an unflanged adapter when it snaps into a cut-out. Check the panel opening and mounting method of your enclosure to make sure the adapter seats correctly.

Can I get custom configurations?

Yes. Nexora supports OEM and ODM customization, including custom flange styles, colors, labels and packaging. Share your drawing, technical parameters or reference sample with our team so we can confirm the configuration before production.
