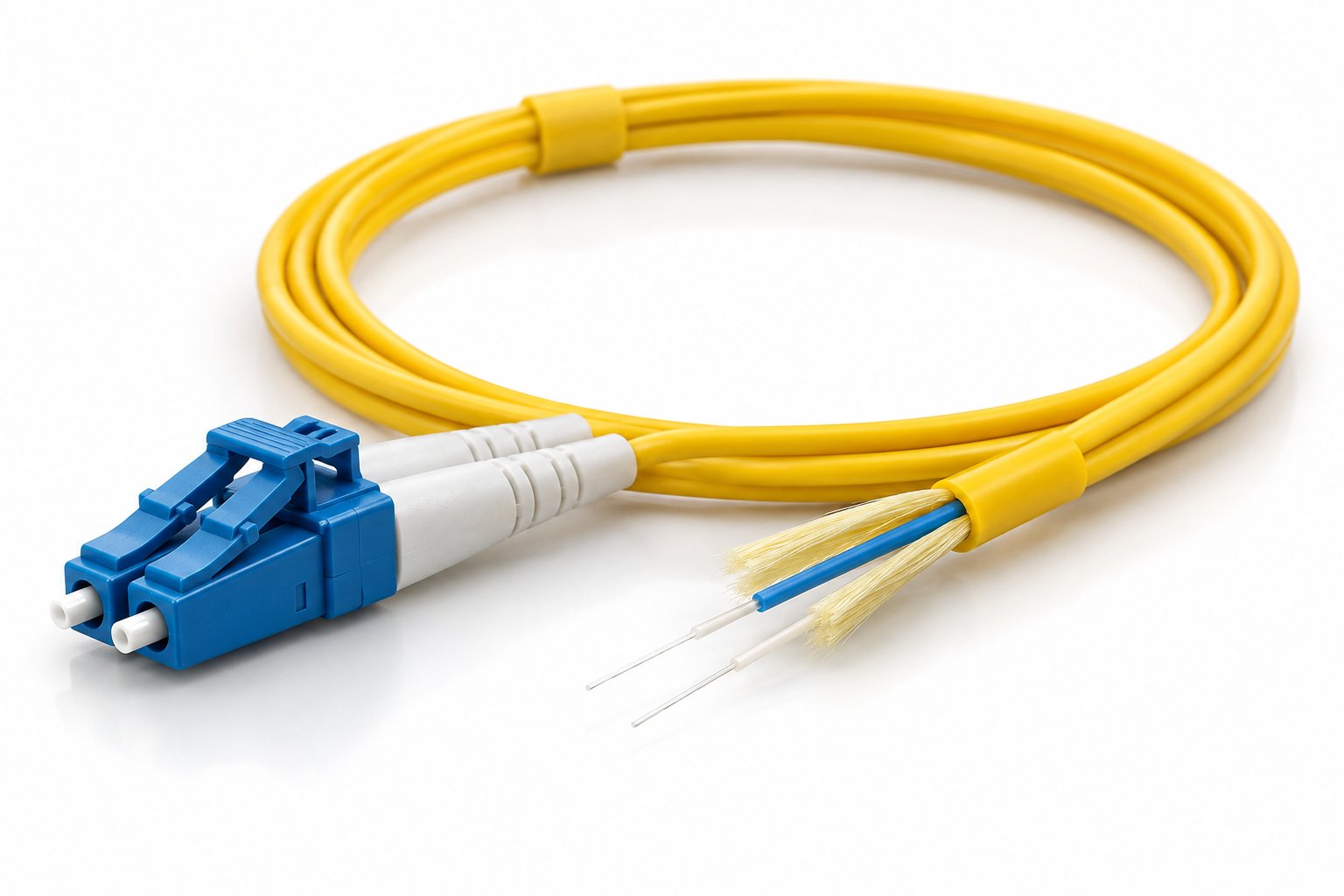

LC-LC Duplex Single Mode Patch Cord

LC to LC duplex single mode G.652D patch cord for data center and enterprise links, with insertion loss ≤0.3 dB max per cord, return loss ≥50 dB and custom lengths.

Fiber type

Single mode G.652D

Connector

LC-LC

Connector type

LC-LC, duplex

MOQ: 100

Product Notes

  • LC-LC duplex single mode G.652D patch cord
  • Insertion loss ≤0.3 dB max per cord at 1310/1550 nm, ≤0.2 dB typical
  • Return loss ≥50 dB (UPC)
  • Duplex pair assembled and labelled as matched transmit and receive
  • Custom lengths from 0.5 m to 30 m
Get A Quote

Specifications

Fiber type, connector, test data, packaging proof and sample-kit notes are kept in the same quote sheet.

Connector typeLC-LC, duplex
Fiber typeSingle mode G.652D
TypeDuplex, two fibers per cord
End faceUPC
Insertion loss≤0.3 dB max per cord (release limit); ≤0.2 dB typical across production (statistical, not a per-piece guarantee)
Return loss≥50 dB (UPC)
Test wavelength1310 nm and 1550 nm
JacketLSZH or PVC
Cable outer diameter2.0 mm or 3.0 mm
LengthCustom, 0.5 m to 30 m
MOQ100 pcs per configuration
Packing100 pcs per inner bag; 1,000 pcs per carton
Lead time7 to 15 working days for standard configurations; 15 to 25 working days for mixed or high-volume orders, counted from order confirmation and deposit receipt
Warranty12 months from shipment date

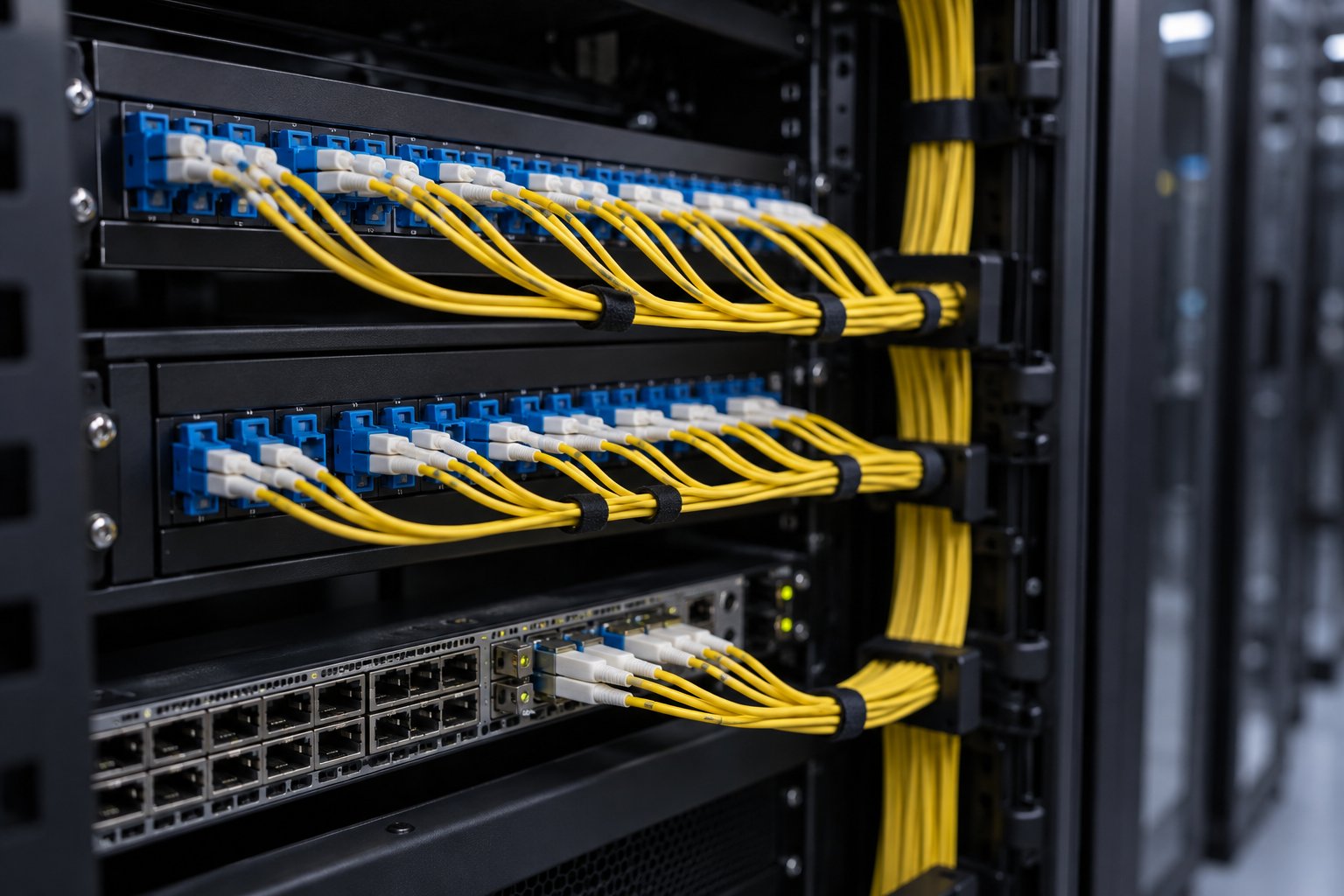

ApplicationData center and enterprise single-mode links between LC ports, patch panels and active equipment; not for multimode links

Application Notes

Why an LC-LC duplex single mode patch cord is decided by the polarity of the pair, not by the connector

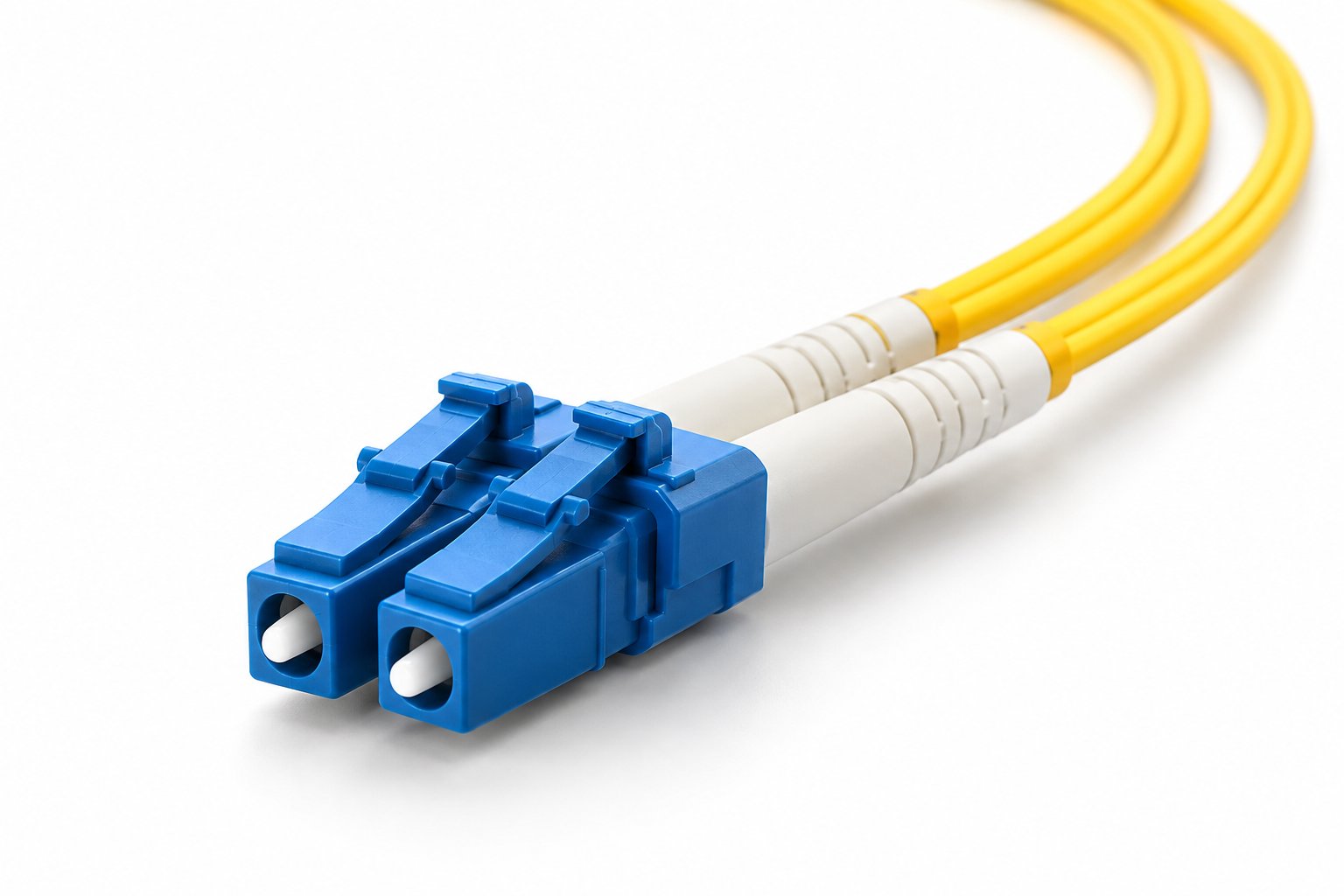

An LC-LC duplex single mode patch cord is the cord that carries a two-fiber transmit and receive pair between two LC ports. The connector is the easy part: LC on both ends, 1.25 mm ferrule, duplex clip. What decides whether the link works on the first plug-in is the polarity of the pair — which of the two fibers in the duplex jacket lands on transmit and which lands on receive at each end. On a single mode link that runs at 1310 nm or 1550 nm, a crossed pair does not degrade the signal, it removes it: the receiver sees no light at all, and the link stays down until the cord is flipped or replaced.

This page is written for data center engineers, integrators and procurement teams who need the measured figures, the polarity and length details, and the commercial terms before they raise a purchase order for a duplex LC single mode cord.

The problem: a crossed duplex pair is invisible until the link is commissioned

The most expensive LC-LC duplex single mode patch cord mistake is not a wrong connector or a wrong fiber type. It is a duplex pair whose two fibers are crossed relative to the ports it connects. A duplex LC cord carries two fibers in one jacket, and the two ends have to agree on which position is transmit and which is receive. When the cord is built with the pair crossed against the port convention in use, the transmitter at one end is pointed at the transmitter at the other end, and the link carries no signal.

The arithmetic is what makes this worth settling before the order rather than after delivery. A single mode link at 1310 nm or 1550 nm is budgeted around the insertion loss of its mated pairs, and this cord is released against a per-cord insertion loss limit of ≤0.3 dB, with ≤0.2 dB as the typical value across production. A crossed pair does not add loss to that budget — it takes the link out of service entirely, because no light reaches the receiver. The failure is also easy to misread: the cord passes a continuity check, the connectors are clean, and the loss figures are within limit, so the fault is not in the numbers. It surfaces at commissioning, when the link is powered up and the port shows no receive level.

The cost lands later, not at install. By the time the link is commissioned the cords are already routed, labelled and dressed into the rack, and the fix is not a field repair: the pair cannot be re-terminated on site, so the affected cords have to be identified, removed and replaced, and the link re-tested. On a multi-rack deployment that is a re-work cycle measured in days, plus the freight and the schedule slip on the replacement cords, and it is the reason the polarity convention belongs in the purchase specification rather than in a post-delivery discussion.

Solution: state the polarity convention on the order, and get the pair assembled and labelled to match

The fix is a specification step, not a product feature. State the polarity convention your ports use when you place the order, and have the duplex pair assembled and labelled to match it, so the transmit and receive positions are fixed at the factory rather than discovered in the rack. This LC-LC duplex single mode patch cord is built on single mode G.652D fiber and terminated with LC connectors on both ends, and the duplex pair is assembled and labelled as a matched transmit and receive pair. Both ends are terminated on our own production lines in Shenzhen, and the finished assembly is released only after it passes three checks: connector end face inspection, insertion loss measurement and return loss measurement.

The measured figures are what make the difference concrete. Insertion loss is measured at 1310 nm and 1550 nm on both terminated ends, with a per-cord release limit of ≤0.3 dB and ≤0.2 dB as the typical value across production. Return loss is specified at ≥50 dB for the UPC end face. Because the limit is applied per cord rather than as a batch average, a cord that measures above the limit is not packed, so the buyer receives a cord that matches the stated figure instead of discovering the problem after the link is live. The labelled pair also keeps polarity correct through moves, adds and changes, which is what makes a rack change a planned task rather than a fault hunt.

The cord is available in LSZH or PVC jacket, which lets the buyer match the cord to the environment: LSZH is the usual choice for ventilated indoor spaces where low smoke and low halogen matter, while PVC is a common general-purpose indoor jacket. Length is custom, so the cord can be made to the exact run instead of leaving coils of slack in the rack.

Optical performance and configuration at a glance

The figures below are the values measured on the finished assembly before packing, and they are the numbers your acceptance test will be compared against.

AttributeValue
Connector typeLC-LC, duplex
Fiber typeSingle mode G.652D
TypeDuplex, two fibers per cord
End faceUPC
Insertion loss≤0.3 dB max per cord (release limit); ≤0.2 dB typical across production (statistical, not a per-piece guarantee)
Return loss≥50 dB (UPC)
Test wavelength1310 nm and 1550 nm
JacketLSZH or PVC
Cable outer diameter2.0 mm or 3.0 mm
LengthCustom, 0.5 m to 30 m
MOQ100 pcs per configuration
Packing100 pcs per inner bag; 1,000 pcs per carton
Lead time7 to 15 working days standard; 15 to 25 working days mixed or high volume
Warranty12 months from shipment date
ApplicationData center and enterprise single-mode links between LC ports, patch panels and active equipment; not for multimode links

Insertion loss is measured at 1310 nm and 1550 nm on both terminated ends. The per-cord release limit is ≤0.3 dB, and ≤0.2 dB is the typical value across production rather than a per-piece guarantee, so a cord that measures 0.25 dB still passes and ships. On a link where the loss budget is tight, compare the ≤0.3 dB release limit against your own channel calculation before you order, and count the mated pairs the channel actually contains.

How the loss figures are measured and recorded

Insertion loss and return loss are measured with the light source and power meter method using a launch reference cord, at 1310 nm and 1550 nm for single mode. The pass limits applied at release are insertion loss ≤0.3 dB per cord and return loss ≥50 dB for the UPC end face. The ≤0.2 dB figure is the typical value across production, not a per-piece guarantee, so a cord that measures 0.25 dB still passes and ships.

Connector end faces are inspected before packing against the end face acceptance criteria for the UPC polish, covering the ferrule contact zone for scratches and contamination. If your incoming inspection needs to match ours, tell us the test wavelength, the reference cord type and the acceptance limits you work to when you request a quote. Test records listing the measured insertion loss and return loss per cord can be supplied with the order; confirm the record format you need, and whether you want it per cord or as a batch summary, when you request a quote.

What to check before you order

Before ordering an LC-LC duplex single mode patch cord, confirm the polarity convention your ports use, and state it on the order so the duplex pair is assembled and labelled to match. This is the single most important detail to verify, because a crossed pair is not something that can be fixed on site.

Next, confirm the fiber type. This cord is built on single mode G.652D, which is the standard fiber for most backbone, access and long-reach links. If the link is multimode, a different cord is required, and the two must not be mixed on one link. Then confirm the length and the jacket. Measure the actual path, add a service loop of about 15 to 30 cm for slack, and choose LSZH or PVC based on the room's fire and smoke requirements. Finally, confirm the loss limit you need: state the per-cord insertion loss limit in the purchase order and ask for the measured value with the goods, so your incoming inspection has a figure to compare against.

How the cord is built and checked

Nexora is the manufacturer of this product: each LC-LC duplex single mode patch cord is terminated on our own production lines in Shenzhen, and the finished assembly is released only after it passes three checks — connector end face inspection, insertion loss measurement and return loss measurement. Insertion loss and return loss are measured on every cord, not on a sample, and the release limits are insertion loss ≤0.3 dB per cord and return loss ≥50 dB for the UPC end face; the ≤0.2 dB figure quoted in the table is the typical value across production, not a per-cord release limit. The end face of every cord is inspected before packing against the acceptance criteria for the UPC polish. A cord that does not meet the release limits is not packed, so the buyer receives a cord that matches the stated figures rather than discovering a problem after installation.

This is a manufacturer-level capability statement: it describes the factory that builds the cord, not a certification of this specific model. Confirm the inspection record you need for your own incoming inspection when you request a quote.

Manufacturing capability behind this cord

Nexora has manufactured fiber optic connectivity products in Shenzhen since 2014, and this cord is terminated on our own production lines rather than bought in as a finished assembly. The factory runs a multi-line production setup for fiber optic connectivity products, which is what makes a custom duplex assembly such as this one practical to order at project quantities rather than only at very large volumes. If your project requires a factory audit or a capability document before the order, tell us what you need to review and we will confirm what can be provided.

Quality control runs through the whole process rather than only at final test: incoming material inspection, component inspection, in-process inspection, functional test, visual inspection, final inspection and packaging inspection. For a duplex single mode patch cord, the steps that matter most are the ones that touch the optical path — ferrule and end face handling, the duplex assembly and polarity check, the termination and curing stage, and the insertion loss and return loss measurement taken on the finished assembly before it is packed.

These are factory-level statements that describe the manufacturing base, not a certification of this specific model. If your project needs a private label, a specific packing marking or a configuration that is not listed here, tell us the requirement and we will confirm whether it fits our standard process or needs a custom setup.

Installation and care notes

Handle the cord with the same care as any single mode patch cord. Keep the bend radius within the limits the fiber is designed for, especially near the connectors where the fiber is most exposed; for a 2.0 mm or 3.0 mm indoor duplex cord, keep the long-term bend radius at 10 times the cable diameter or more and the short-term radius during installation at 20 times the cable diameter or more. Keep the dust caps on the connectors until the moment they are plugged in, and clean the end faces with a proper fiber cleaner if they are exposed. When routing the cord in a rack, avoid sharp bends and do not pull on the connector body to move the cable. A little care at install keeps the end faces clean and the loss low for the life of the link.

Packing, MOQ and lead time

Cords are packed individually with the dust cap fitted and the connector protected, then grouped per your order quantity. Standard packing is 100 pcs per inner bag and 1,000 pcs per carton, so an order at the 100 pcs minimum order quantity ships as one inner bag. The minimum order quantity is 100 pcs per configuration, and it is counted per configuration rather than per order: an order that mixes several lengths, jacket options or polarity conventions is quoted as 100 pcs for each configuration in the mix, so a mixed order of three configurations starts at 300 pcs in total. If you need to test a smaller quantity first, ask for a sample order and we will confirm what is possible for your configuration.

Standard orders ship from our Shenzhen facility, and the lead time for a standard configuration is 7 to 15 working days after order confirmation. Mixed or high-volume orders are scheduled separately and typically run 15 to 25 working days. Lead time is counted from order confirmation and deposit receipt, and it covers production and packing; it does not include the transit time of the shipment, which depends on the freight method you choose. Confirm the schedule for your configuration when you request a quote.

Payment terms

Standard payment terms are a 30% deposit on order confirmation with the 70% balance due before shipment, and the exact terms are stated on the proforma invoice for your order. The deposit is what releases the order into production scheduling, which is why the lead time above is counted from deposit receipt. For repeat orders and established accounts, other structures can be discussed with the quotation. Tell us your preferred terms when you request a quote so they can be reviewed together with the price and the schedule.

Warranty and claims

LC-LC duplex single mode patch cords are covered by a 12-month warranty against manufacturing defects, counted from the shipment date shown on the commercial invoice. This 12-month period is the standard warranty for this product; if your project requires a different period or different return terms, raise it when you request a quote so it can be agreed in the order documents before production. Covered defects include damaged ferrules, connector end faces that do not meet the specified insertion loss or return loss on arrival, and defects in the connector body or cable jacket present at delivery. Damage caused by installation, cleaning or handling after delivery, and use outside the specified fiber type or bend radius, are not covered.

Raise a claim within 30 days of receiving the goods, with the batch reference printed on the inner bag and carton labels, the quantity affected and a test record showing the measured value. We will review the affected units and reply within 5 working days, and arrange replacement or credit for confirmed defects. Keeping the batch reference from the packing label is what allows a claim to be traced back to the production record for that run, so keep the labels with the goods until incoming inspection is complete.

Frequently asked questions

What polarity should I specify for a duplex LC patch cord?

State the polarity convention your ports use when you order, so the duplex pair is assembled and labelled to match. A duplex cord carries two fibers in one jacket, and the two ends have to agree on which position is transmit and which is receive; a crossed pair leaves the receiver with no light.

What insertion loss should I expect from this cord?

The per-cord release limit for insertion loss is ≤0.3 dB, with ≤0.2 dB as the typical value across production, measured at 1310 nm and 1550 nm on both terminated ends. Return loss is specified at ≥50 dB for the UPC end face.

Is this cord single mode or multimode?

This cord is built on single mode G.652D fiber. If your link is multimode, a different cord is required, and the two must not be mixed on one link.

Can I order a specific length?

Yes, the length is custom within 0.5 m to 30 m. Measure the actual path and add a service loop of about 15 to 30 cm for slack, then confirm the exact length with the supplier.

What is the difference between LSZH and PVC?

LSZH produces less smoke and no halogen in a fire and is common in enclosed or ventilated spaces. PVC is a general-purpose jacket for less strict environments. Choose based on your local fire-safety requirement.

How is the cord tested before shipment?

Insertion loss and return loss are measured on every cord with the light source and power meter method at 1310 nm and 1550 nm, and the connector end face is inspected before packing. Test records with the measured values can be supplied with the order; tell us whether you need them per cord or as a batch summary.

What is the minimum order quantity?

The minimum order quantity is 100 pcs per configuration. It is counted per configuration, so a mixed order of three configurations starts at 300 pcs in total. An order at the 100 pcs minimum ships as one inner bag under standard packing.

What is the lead time and how is it counted?

Standard configurations ship 7 to 15 working days after order confirmation; mixed or high-volume orders typically run 15 to 25 working days. Lead time is counted from order confirmation and deposit receipt and covers production and packing, not the transit time of the shipment.

How is the cord packed?

Cords are packed individually with the dust cap fitted and the connector protected, then grouped per order quantity. Standard packing is 100 pcs per inner bag and 1,000 pcs per carton. Tell us if you need a different packing quantity or your own packing marking.

What payment terms do you accept?

Standard terms are a 30% deposit on order confirmation with the 70% balance due before shipment, and the exact terms are stated on the proforma invoice for your order. Other structures can be discussed for repeat orders and established accounts.

Can I order a sample before placing a bulk order?

Yes. If you need to check the polarity, the length or the measured loss before committing to a bulk order, ask for a sample order and we will confirm what is possible for your configuration. Sample orders are quoted separately from the bulk price.

Do you offer OEM/ODM and custom labeling?

Yes. Cords can be built to your configuration and supplied with your own label and packing marking as an OEM/ODM order. Send the label artwork, the packing quantity and the configuration you need, and we will confirm the details with the quotation.
