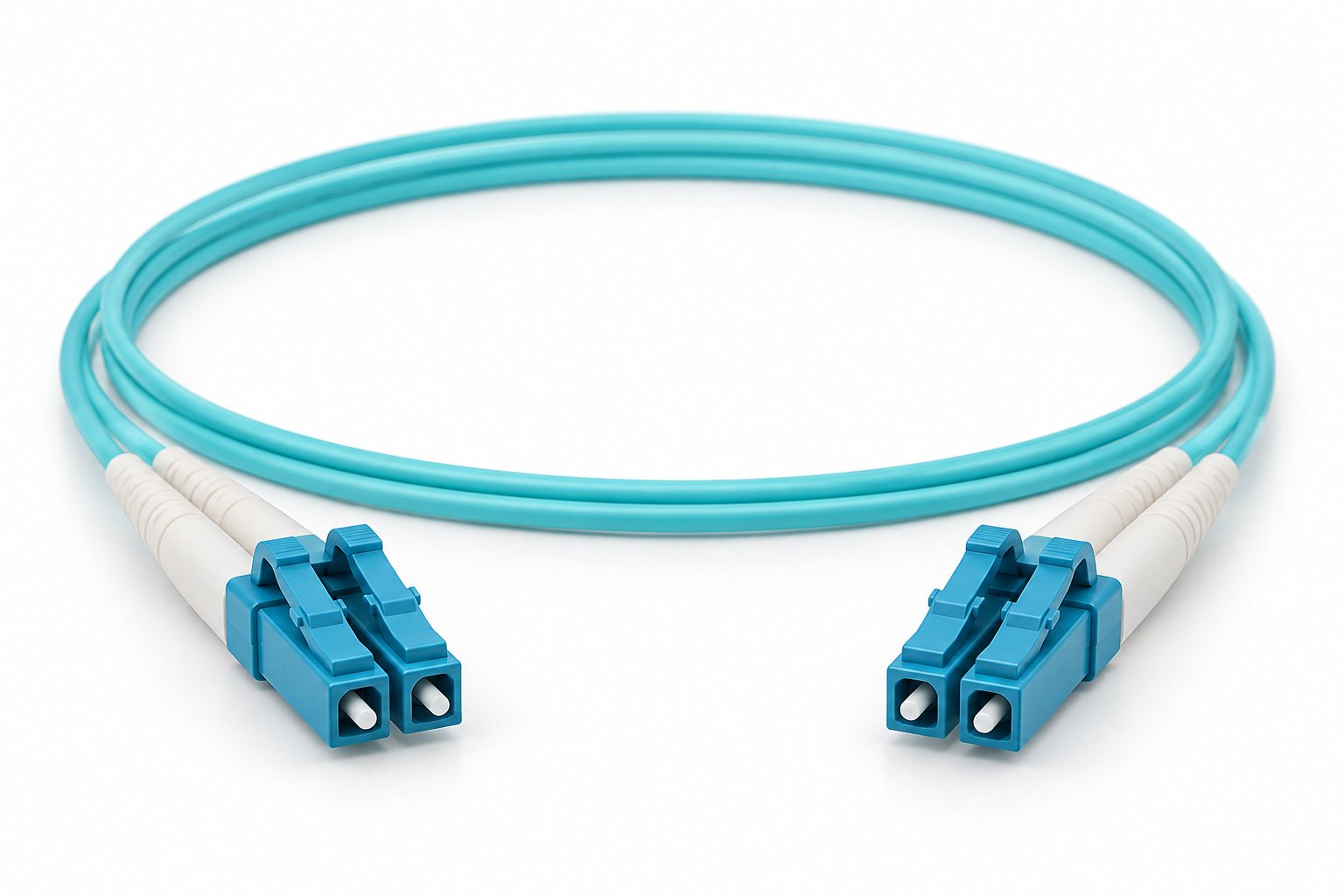

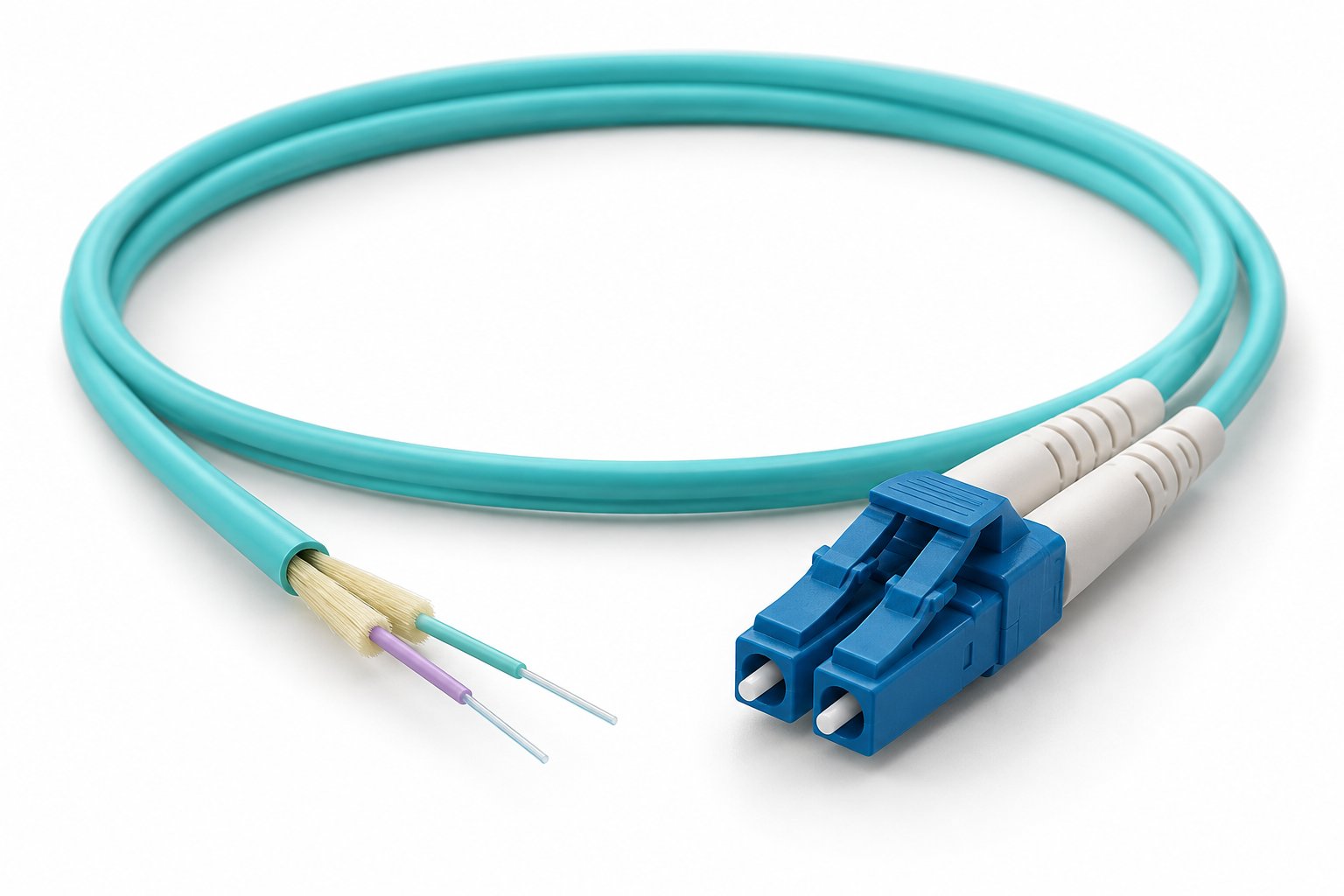

LC-LC Duplex Multimode OM4 Patch Cord
LC to LC duplex multimode OM4 patch cord for 40G and 100G data center links, with insertion loss ≤0.3 dB max per cord and custom lengths.
Fiber type
Multimode OM4
Connector
LC-LC
Connector type
LC-LC
Product Notes
- LC-LC duplex multimode OM4 patch cord
- Insertion loss ≤0.3 dB max per cord at 850/1300 nm, ≤0.2 dB typical
- Return loss ≥20 dB
- Duplex pair assembled and labelled as matched transmit and receive
- Custom lengths from 0.5 m to 30 m
Specifications
Fiber type, connector, test data, packaging proof and sample-kit notes are kept in the same quote sheet.
| Connector type | LC-LC |
|---|---|
| Fiber type | Multimode OM4 (laser-optimized) |
| Type | Duplex |
| Jacket | LSZH or PVC |
| Length | Custom, 0.5 m to 30 m |
| Application | Data center 40G/100G multimode links, top-of-rack to server or storage, LAN backbone within multimode reach; not for single-mode links |
| Insertion loss | ≤0.3 dB max per cord (release limit); ≤0.2 dB typical across production (statistical, not a per-piece guarantee) |
| Return loss | ≥20 dB |
| Test wavelength | 850 nm and 1300 nm |
| Cable outer diameter | 2.0 mm or 3.0 mm |
| MOQ | 100 pcs per configuration |
| Packing | 100 pcs per inner bag; 1,000 pcs per carton |
| Lead time | 7 to 15 working days for standard configurations; 15 to 25 working days for mixed or high-volume orders, counted from order confirmation and deposit receipt |
| Warranty | 12 months from shipment date |
Application Notes
Why an LC-LC duplex OM4 patch cord is specified by its loss budget, not by its fiber grade

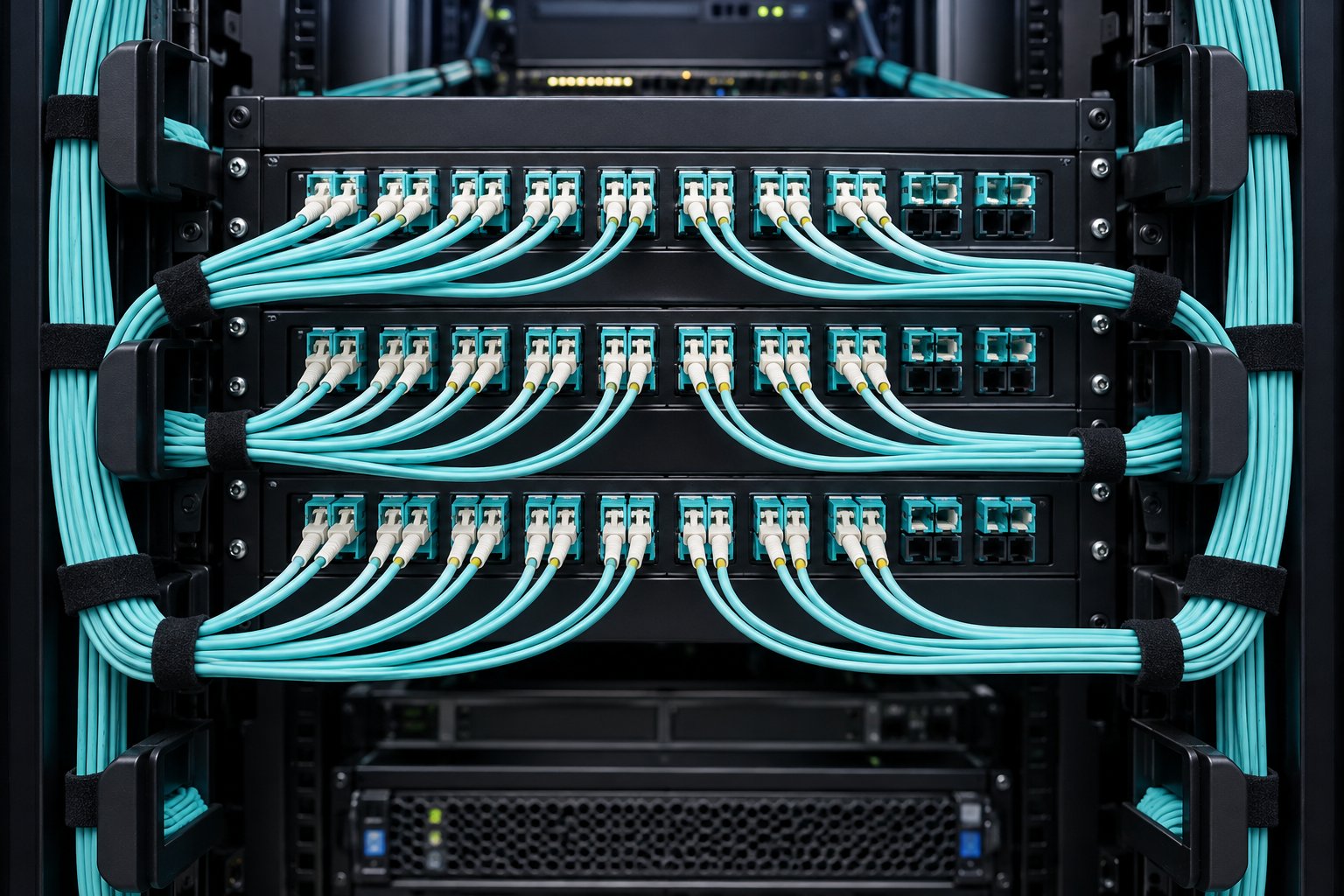

An LC-LC duplex OM4 patch cord is the standard cord for 40G and 100G multimode links inside a data center, and it is usually ordered in the hundreds at a time. The fiber grade is the easy part: OM4 is laser-optimized multimode fiber, and it is the grade most 40G and 100G multimode transceivers are designed around. The part that decides whether the link passes acceptance is the loss the cord adds to the budget, and that number is set by the connector end face and the termination, not by the fiber grade printed on the jacket. This page is written for data center engineers, integrators and procurement teams who need the measured figures, the ordering details and the commercial terms before they raise a purchase order.
The problem: a cord that passes a continuity check can still push a 100G link over budget
The most expensive LC-LC OM4 patch cord mistake is not a wrong connector. It is a cord whose insertion loss is higher than the figure the link was budgeted for, on a run that is already close to the reach limit of the multimode optics. A 100G multimode link over OM4 is typically budgeted for a reach of about 100 m at 850 nm with an MPO-to-LC breakout or LC duplex interface, and the optical budget for that link is small. Every mated pair in the channel consumes part of it: the two transceiver ports, the patch panel or adapter, and the two ends of this cord. When a cord arrives with a higher insertion loss than planned, the loss is not absorbed anywhere — it comes straight off the margin at the receiver.
The arithmetic is what makes this worth checking before the order rather than after delivery. A duplex LC multimode cord is normally specified at insertion loss ≤0.3 dB per cord, with ≤0.2 dB as the typical value across production. A cord built with a poorly aligned ferrule or a contaminated end face can measure 0.5 to 0.8 dB, which is 0.2 to 0.5 dB above the release limit and two to four times the typical value. On a 100G link that is already running near its reach limit, that extra loss is enough to move the link from passing to marginal, and marginal links do not fail cleanly: they pass a continuity check at commissioning and then show up as intermittent errors under full traffic load, when the receiver margin is smallest.
The cost lands later, not at install. The cords are already routed, labelled and dressed into the rack by the time the error-rate complaint arrives. The fix is not a field repair, because the end face cannot be re-polished on site: the affected cords have to be identified by measurement, removed and replaced, and the link re-tested. On a multi-rack deployment that is a re-work cycle measured in days, plus the freight and the schedule slip on the replacement cords, and it is the reason the loss figure belongs in the purchase specification rather than in a post-delivery discussion.
Solution: order the cord to a stated per-cord loss limit, and get the measured value with the goods
The fix is a specification step, not a product feature. Put the insertion loss limit in the purchase order as a per-cord release limit, and ask for the measured value to travel with the goods so your incoming inspection has something to compare against. This LC-LC duplex OM4 patch cord is built on laser-optimized OM4 multimode fiber and terminated with LC connectors on both ends, and it is released against a per-cord insertion loss limit of ≤0.3 dB, with ≤0.2 dB as the typical value across production. Both ends are terminated on our own production lines in Shenzhen, and the finished assembly is released only after it passes three checks: connector end face inspection, insertion loss measurement and return loss measurement.
The measured figures are what make the difference concrete. Insertion loss is measured at 850 nm and 1300 nm on both terminated ends, with a per-cord release limit of ≤0.3 dB and ≤0.2 dB as the typical value across production. Return loss is specified at ≥20 dB for the multimode LC interface. Because the limit is applied per cord rather than as a batch average, a cord that measures above the limit is not packed, so the buyer receives a cord that matches the stated figure instead of discovering the problem after the link is live. The duplex pair is assembled and labelled as a matched transmit and receive pair, which keeps polarity correct through moves and reduces the chance of a crossed pair during a rack change.
The cord is available in LSZH or PVC jacket, which lets the buyer match the cord to the environment: LSZH is the usual choice for ventilated indoor spaces where low smoke and low halogen matter, while PVC is a common general-purpose indoor jacket. Length is custom, so the cord can be made to the exact run instead of leaving coils of slack in the rack, and the OM4 fiber grade is what allows the run to stay on multimode optics rather than moving to single mode at a higher transceiver cost.
Optical performance and configuration at a glance
The figures below are the values measured on the finished assembly before packing, and they are the numbers your acceptance test will be compared against.
| Attribute | Value |
|---|---|
| Connector type | LC-LC |
| Fiber type | Multimode OM4 (laser-optimized) |
| Type | Duplex |
| Insertion loss | ≤0.3 dB max per cord (release limit); ≤0.2 dB typical across production (statistical, not a per-piece guarantee) |
| Return loss | ≥20 dB |
| Test wavelength | 850 nm and 1300 nm |
| Jacket | LSZH or PVC |
| Cable outer diameter | 2.0 mm or 3.0 mm |
| Length | Custom, 0.5 m to 30 m |
| MOQ | 100 pcs per configuration |
| Packing | 100 pcs per inner bag; 1,000 pcs per carton |
| Lead time | 7 to 15 working days standard; 15 to 25 working days mixed or high volume |
| Warranty | 12 months from shipment date |
| Application | Data center 40G/100G multimode links, top-of-rack to server or storage, LAN backbone within multimode reach; not for single-mode links |
Insertion loss is measured at 850 nm and 1300 nm on both terminated ends. The per-cord release limit is ≤0.3 dB, and ≤0.2 dB is the typical value across production rather than a per-piece guarantee, so a cord that measures 0.25 dB still passes and ships. On a link where the loss budget is tight, compare the ≤0.3 dB release limit against your own channel calculation before you order, and count the mated pairs the channel actually contains.
How the loss figures are measured and recorded
Insertion loss and return loss are measured with the light source and power meter method using a launch reference cord, at 850 nm and 1300 nm for multimode. The pass limits applied at release are insertion loss ≤0.3 dB per cord and return loss ≥20 dB. The ≤0.2 dB figure is the typical value across production, not a per-piece guarantee, so a cord that measures 0.25 dB still passes and ships.
Connector end faces are inspected before packing against the end face acceptance criteria for the multimode LC interface, covering the ferrule contact zone for scratches and contamination. If your incoming inspection needs to match ours, tell us the test wavelength, the reference cord type and the acceptance limits you work to when you request a quote. Test records listing the measured insertion loss and return loss per cord can be supplied with the order; confirm the record format you need, and whether you want it per cord or as a batch summary, when you request a quote.
What to check before you order
Before ordering an LC-LC duplex OM4 patch cord, confirm the fiber grade against the transceiver you plan to use. OM4 is the grade most 40G and 100G multimode transceivers are designed around, and it is what allows the run to stay on multimode optics. If the link is single mode, a different cord is required, and the two must not be mixed on one link.
Next, confirm the polarity and the duplex arrangement. A duplex cord keeps the transmit and receive fibers paired in one jacket, which is easier to trace and less likely to be crossed during a rack change. Then confirm the length and the jacket. Measure the actual path, add a service loop of about 15 to 30 cm for slack, and choose LSZH or PVC based on the room's fire and smoke requirements. Finally, confirm the loss limit you need: state the per-cord insertion loss limit in the purchase order and ask for the measured value with the goods, so your incoming inspection has a figure to compare against.
How the cord is built and checked
Nexora is the manufacturer of this product: each LC-LC duplex OM4 patch cord is terminated on our own production lines in Shenzhen, and the finished assembly is released only after it passes three checks — connector end face inspection, insertion loss measurement and return loss measurement. Insertion loss and return loss are measured on every cord, not on a sample, and the release limits are insertion loss ≤0.3 dB per cord and return loss ≥20 dB; the ≤0.2 dB figure quoted in the table is the typical value across production, not a per-cord release limit. The end face of every cord is inspected before packing against the acceptance criteria for the multimode LC interface. A cord that does not meet the release limits is not packed, so the buyer receives a cord that matches the stated figures rather than discovering a problem after installation.
This is a manufacturer-level capability statement: it describes the factory that builds the cord, not a certification of this specific model. Confirm the inspection record you need for your own incoming inspection when you request a quote.
Manufacturing capability behind this cord
Nexora has manufactured fiber optic connectivity products in Shenzhen since 2014. The facility covers 16,000+ m² and runs 12 production lines with 180+ employees, giving an annual capacity of 2.8M+ units and a monthly capacity of 230K+ units. More than 3,500 product configurations are in production, and 300+ new configurations are developed each year, which is what makes a custom assembly such as this one practical to order at project quantities rather than only at very large volumes.
Quality control runs through the whole process rather than only at final test: incoming material inspection, component inspection, in-process inspection, functional test, visual inspection, final inspection and packaging inspection, across 30+ QC stations. For a duplex multimode patch cord, the steps that matter most are the ones that touch the optical path — ferrule and end face handling, the duplex assembly and polarity check, the termination and curing stage, and the insertion loss and return loss measurement taken on the finished assembly before it is packed.
These are factory-level figures that describe the manufacturing base, not a certification of this specific model. More than 500 OEM/ODM projects have been delivered for customers in 50+ countries and regions, covering telecom operators, ISPs, distributors, system integrators, network contractors and data center companies. If your project needs a private label, a specific packing marking or a configuration that is not listed here, tell us the requirement and we will confirm whether it fits our standard process or needs a custom setup.
Installation and care notes
Handle the cord with the same care as any multimode patch cord. Keep the bend radius within the limits the fiber is designed for, especially near the connectors where the fiber is most exposed; for a 2.0 mm or 3.0 mm indoor duplex cord, keep the long-term bend radius at 10 times the cable diameter or more and the short-term radius during installation at 20 times the cable diameter or more. Keep the dust caps on the connectors until the moment they are plugged in, and clean the end faces with a proper fiber cleaner if they are exposed. When routing the cord in a rack, avoid sharp bends and do not pull on the connector body to move the cable. A little care at install keeps the end faces clean and the loss low for the life of the link.
Packing, MOQ and lead time
Cords are packed individually with the dust cap fitted and the connector protected, then grouped per your order quantity. Standard packing is 100 pcs per inner bag and 1,000 pcs per carton, so an order at the 100 pcs minimum order quantity ships as one inner bag. The minimum order quantity is 100 pcs per configuration, and it is counted per configuration rather than per order: an order that mixes several lengths, jacket options or duplex arrangements is quoted as 100 pcs for each configuration in the mix, so a mixed order of three configurations starts at 300 pcs in total. If you need to test a smaller quantity first, ask for a sample order and we will confirm what is possible for your configuration.
Standard orders ship from our Shenzhen facility, and the lead time for a standard configuration is 7 to 15 working days after order confirmation. Mixed or high-volume orders are scheduled separately and typically run 15 to 25 working days. Lead time is counted from order confirmation and deposit receipt, and it covers production and packing; it does not include the transit time of the shipment, which depends on the freight method you choose. Confirm the schedule for your configuration when you request a quote.
Payment terms
Standard payment terms are a 30% deposit on order confirmation with the 70% balance due before shipment, and the exact terms are stated on the proforma invoice for your order. The deposit is what releases the order into production scheduling, which is why the lead time above is counted from deposit receipt. For repeat orders and established accounts, other structures can be discussed with the quotation. Tell us your preferred terms when you request a quote so they can be reviewed together with the price and the schedule.
Warranty and claims
LC-LC duplex OM4 patch cords are covered by a 12-month warranty against manufacturing defects, counted from the shipment date shown on the commercial invoice. This 12-month period is the standard warranty for this product; if your project requires a different period or different return terms, raise it when you request a quote so it can be agreed in the order documents before production. Covered defects include damaged ferrules, connector end faces that do not meet the specified insertion loss or return loss on arrival, and defects in the connector body or cable jacket present at delivery. Damage caused by installation, cleaning or handling after delivery, and use outside the specified fiber grade or bend radius, are not covered.
Raise a claim within 30 days of receiving the goods, with the batch reference printed on the inner bag and carton labels, the quantity affected and a test record showing the measured value. We will review the affected units and reply within 5 working days, and arrange replacement or credit for confirmed defects. Keeping the batch reference from the packing label is what allows a claim to be traced back to the production record for that run, so keep the labels with the goods until incoming inspection is complete.
Frequently asked questions
What insertion loss should I expect from this OM4 patch cord?
The per-cord release limit for insertion loss is ≤0.3 dB, with ≤0.2 dB as the typical value across production, measured at 850 nm and 1300 nm on both terminated ends. Return loss is specified at ≥20 dB.
Is this cord compatible with my 40G or 100G transceiver?
The LC-LC duplex interface is the standard for most multimode 40G and 100G transceivers, and OM4 is the grade those transceivers are designed around. Confirm the connector type and fiber grade on your transceiver data sheet before ordering.
How far can this cord carry a 40G or 100G signal?
The reach is set by the transceiver and the whole channel, not by the cord alone. A 100G multimode link over OM4 is typically budgeted for about 100 m at 850 nm, and every mated pair in the channel consumes part of that budget. Compare the ≤0.3 dB per-cord limit against your own channel calculation, and if the run is longer than the reach of multimode, single mode is the alternative to consider.
Can I order a specific length?
Yes, the length is custom within 0.5 m to 30 m. Measure the actual path and add a service loop of about 15 to 30 cm for slack, then confirm the exact length with the supplier.
What is the difference between LSZH and PVC?
LSZH produces less smoke and no halogen in a fire and is common in enclosed or ventilated spaces. PVC is a general-purpose jacket for less strict environments. Choose based on your local fire-safety requirement.
How is the cord tested before shipment?
Insertion loss and return loss are measured on every cord with the light source and power meter method at 850 nm and 1300 nm, and the connector end face is inspected before packing. Test records with the measured values can be supplied with the order; tell us whether you need them per cord or as a batch summary.
What is the minimum order quantity?
The minimum order quantity is 100 pcs per configuration. It is counted per configuration, so a mixed order of three configurations starts at 300 pcs in total. An order at the 100 pcs minimum ships as one inner bag under standard packing.
What is the lead time and how is it counted?
Standard configurations ship 7 to 15 working days after order confirmation; mixed or high-volume orders typically run 15 to 25 working days. Lead time is counted from order confirmation and deposit receipt and covers production and packing, not the transit time of the shipment.
How is the cord packed?
Cords are packed individually with the dust cap fitted and the connector protected, then grouped per order quantity. Standard packing is 100 pcs per inner bag and 1,000 pcs per carton. Tell us if you need a different packing quantity or your own packing marking.
What payment terms do you accept?
Standard terms are a 30% deposit on order confirmation with the 70% balance due before shipment, and the exact terms are stated on the proforma invoice for your order. Other structures can be discussed for repeat orders and established accounts.
Can I order a sample before placing a bulk order?
Yes. If you need to check the length, the jacket or the measured loss before committing to a bulk order, ask for a sample order and we will confirm what is possible for your configuration. Sample orders are quoted separately from the bulk price.
Do you offer OEM/ODM and custom labeling?
Yes. Cords can be built to your configuration and supplied with your own label and packing marking as an OEM/ODM order. Send the label artwork, the packing quantity and the configuration you need, and we will confirm the details with the quotation.
